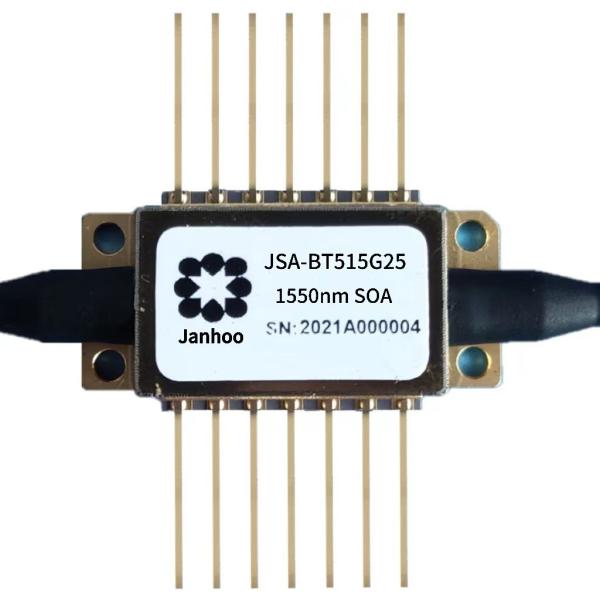

    Janhoo 1550nm SOA Semiconductor Optical Amplifier Butterfly

    Ask Lasest Price
    Model Number : JSA-BT515G25
    Brand Name : Janhoo
    Supply Ability : 200 Piece/Pieces per Month
    Price : $700.00/sets 1-9 sets
    • Product Details
    • Company Profile

    Janhoo 1550nm SOA Semiconductor Optical Amplifier Butterfly

    Janhoo 1550nm SOA Semiconductor Optical Amplifier Butterfly
    1550nm Semiconductor optical amplifier SOA Butterfly
    Janhoo’s 1550nm Semiconductor Optical Amplifiers (SOAs) are designed for high gain, high powerful, low PDG SOA which goes into the standard GR-468-CORE.

    Applications

    * Used for optical sensing system, to replace AOM+EDFA.
    * Used for FMCW Lidar to extend detection distance.
    * Used for PON network (FTTX) relay amplification.

    HighLights

    * High Electric-optical Conversion Efficiency, Low Power Consumption.
    * Built-in Isolator.
    * Low PDG.
    * Support polarization-maintaining amplification.
    Typical Characteristics
    Janhoo 1550nm SOA Semiconductor Optical Amplifier Butterfly
    Specifications ( @25℃)
    Parameter
    Symbol
    Working conditions
    Min.
    Typ.
    Max.
    Unit
    Wavelength
    λ
    ---
    1490
    ---
    1590
    nm
    Operating Wavelength
    Δλ
    @-3dB
    55
    ---
    60
    nm
    Drive Current
    If
    ---
    ---
    250
    400
    mA
    Saturation Power
    Psat
    If=120mA
    12
    ---
    15
    dBm
    Small Signal Gain
    G
    ---
    25
    ---
    30
    dB
    Turn off extinction ratio
    ---
    ---
    50
    ---
    dB
    Polarization Dependent Gain
    PDG
    ---
    ---
    1.0
    2.0
    dB
    Forward Voltage
    Vf
    ---
    ---
    ---
    1.8
    V
    Spot Size
    θL/θT
    ---
    ---
    16/30
    ---
    °
    Operating Temperature
    TC
    I=Iop
    -10
    ---
    70
    Storage Temperature
    Tstg
    ---
    -40
    ---
    85
    Dimensions and Pin Definition
    Janhoo 1550nm SOA Semiconductor Optical Amplifier Butterfly
